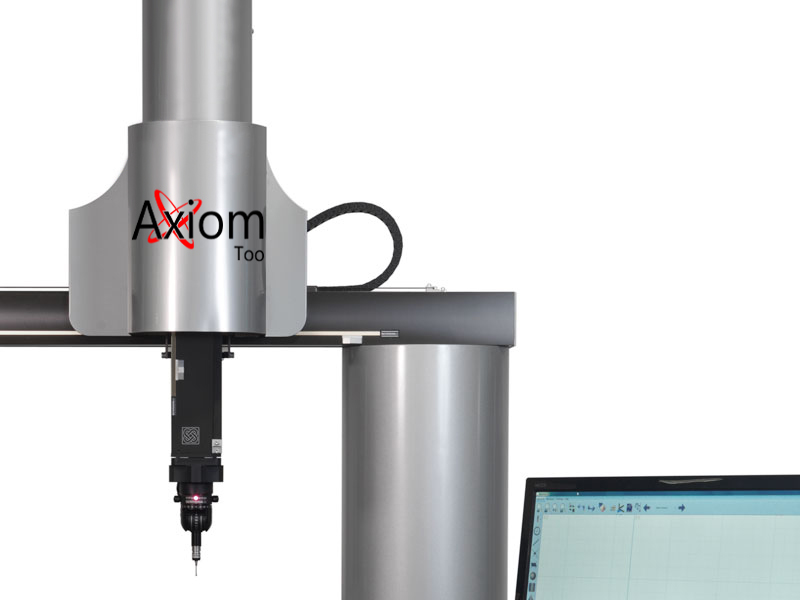

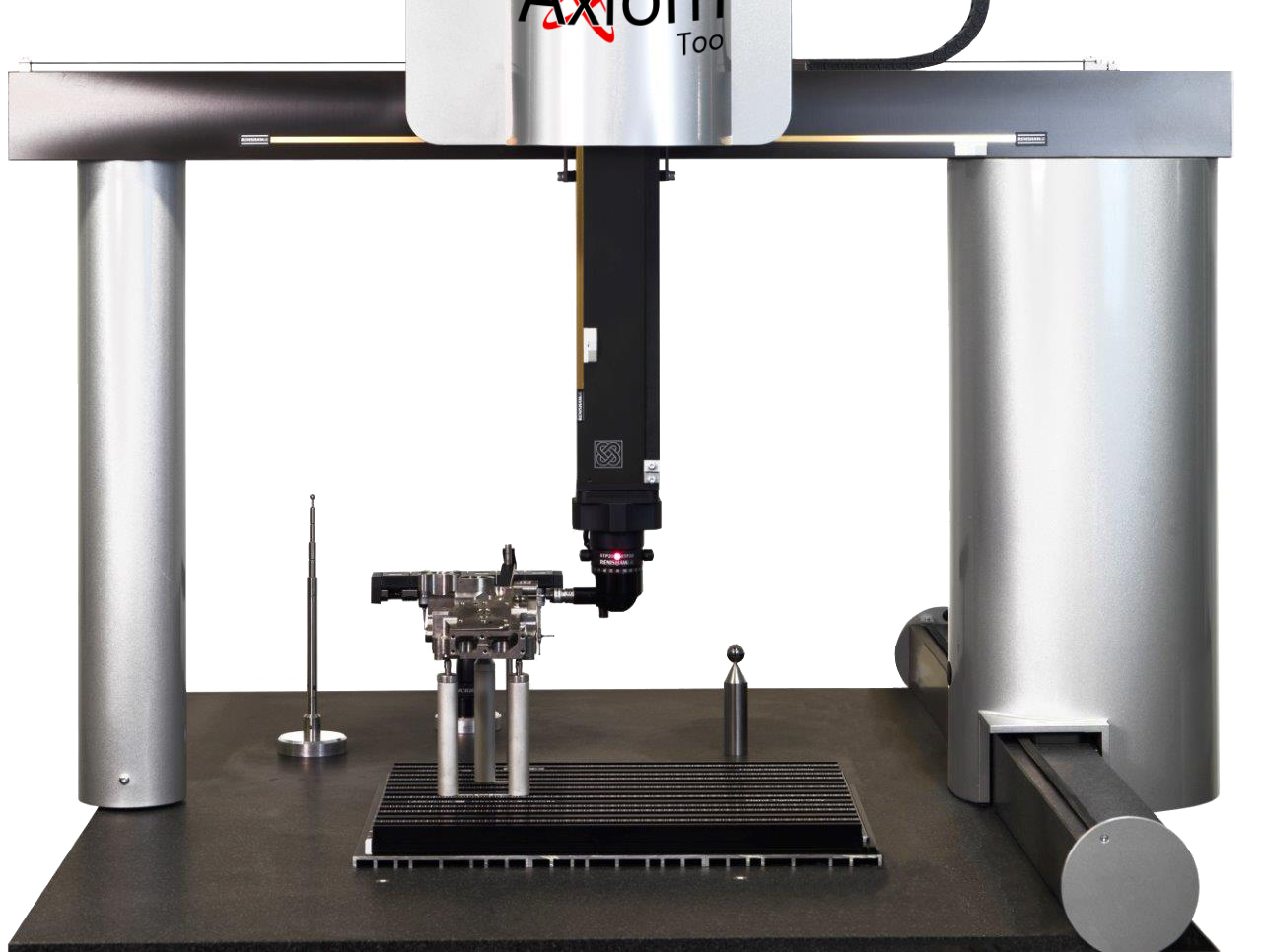

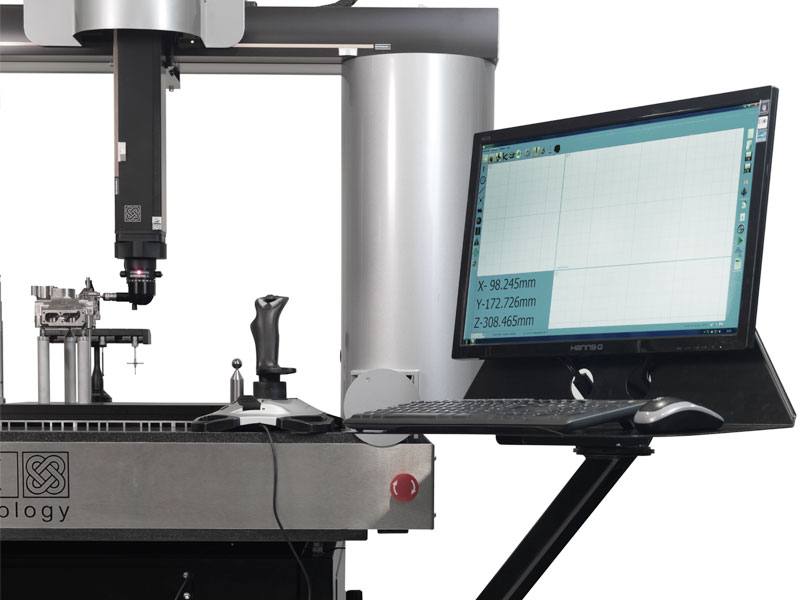

Fast, accurate and reliable, the Axiom too CNC CMM comes in four different sizes with Y axis travel up to 1200mm. The Axiom too range of shop floor CMMs can be used with touch trigger probe, continuous contact scanning probe or with Aberlink’s revolutionary non-contact camera system.
The all aluminium bridge structure not only ensures that the Axiom too has low inertia and high acceleration to get the job done quickly, but also that the temperature of the machine rapidly follows the temperature of the room, ideal when the CMM is not housed in a controlled environment. Temperature compensation in the software reports results as if they had been measured at 20°C/68°F
The Axiom too can be supplied with any Renishaw touch trigger probe and probe head. For more help selecting the right probe, view our probe head comparison table.
Axis Travel (mm) | X 640 Y 600, 900, 1200 Z 500 |
Overall Size (mm) | X 1040 Y 900, 1200, 1500 Z 2320 |
Motion | CNC |
Structure | Bridge |
Suitable for | Shop Floor/Inspection Room |
Drive Type | Belt |
*Volumetric Accuracy | TP20 (2.4 + L/250)µm TP200 (2.3 + L/250)µm SP25M (2.1 + L/250)µm |
Scale Resolution | 0.5µm |
**Optimum Temp Range | 18 - 22°C |
Operational Temp Range | 5 - 45°C |
Table Construction | Honeycomb aluminium & granite or solid granite |
Table Load Capacity | 300kg (Honeycomb) or 500kg (Solid) |
Max. Velocity Vector | 600mm/sec |
Max. Acceleration Vector | 600mm/sec² |
Air Required | Yes |
Air Consumption | 100 l/min (3.53 cfm) |
Required Air Pressure | 7 bar (100 psi) |
Aberlink Camera Support | Yes |
*Maximum Permissible Error MPEE within the thermal limits defined for optimum temperature range. **Installation environmental thermal limits: Rate of change <1°C/hr and <2°C/24hr. Temperature gradient <1°C/m
