Extol CNC CMM

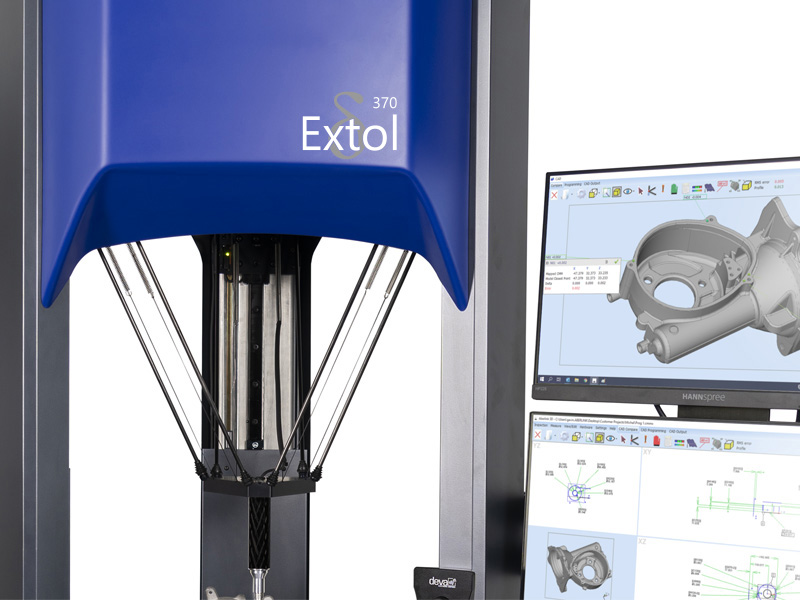

True to Aberlink's heritage for innovation, the Extol is the world's first CMM to utilise a delta mechanism.

Designed for robustness and reliability, the Extol CMM will run around the clock making it ideal whether it is positioned next to a machine tool, in a manufacturing cell, or used in a dedicated inspection area.

Five temperature sensors monitoring both the machine and ambient temperature ensure that the Extol is capable operating in uncontrolled environments and reporting measurements as though they had been taken at 20°C. The software will also produce a warning should the temperature be changing at a rate that is not conducive with reasonable metrology practice.

Robust, accurate and reliable, the Extol CMM is the perfect solution to automatically verify part quality for critical components.

See the Extol in action

Automation

The automatic tool offset correction available with the Aberlink 3D software compliments the attributes of the Extol perfectly allowing utilisation as part of a fully automated production process in the midst of a manufacturing environment.

Extol CNC CMM
Extol CNC CMM

Superior Design

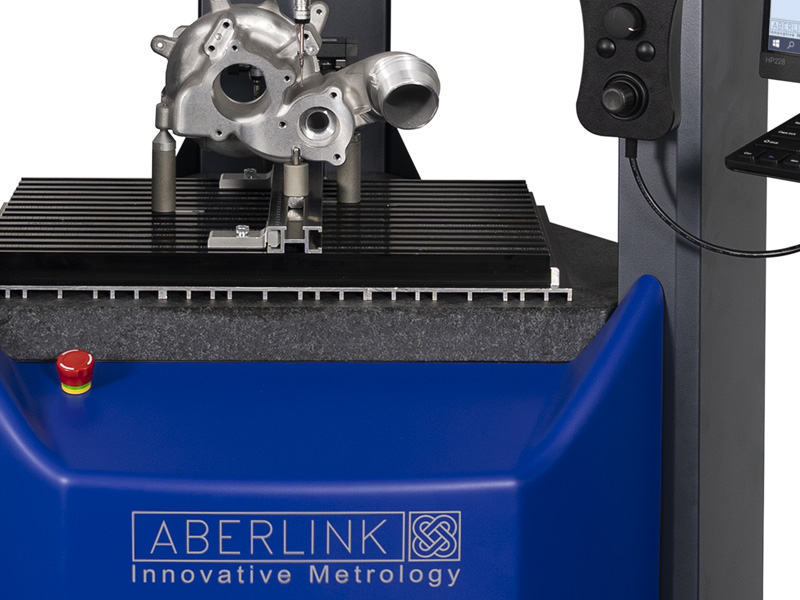

The ergonomics of the Extol have also been a significant design factor. It is not only quick and easy to perform one-off inspections, but also has ample access for either batch inspection or to facilitate automatic loading. With a larger measuring volume and smaller overall footprint than its predecessor, the Xtreme, the Extol can be positioned exactly where the measurement is needed.

Scanning

The Extol can now be supplied with a SP25M scanning module, increasing inspection speed for complex parts and allowing even more functionallity for our most robust shop-floor CMM yet. Clever implementation and low profile mounting allows the probe to be switched between scanning and touch-probe effortlessly, giving you more freedom for your shop floor measurements.

Extol CNC CMM
  • Fully sealed recirculating cross-roller bearings for dirt immunity
  • Swiss-made DC motors and new Deva motion control system provide shop floor reliability
  • Super-smooth belt-drives and linear bearings enable long styli to be used without false triggering through vibration
  • Automatic tool offset correction and automation options allow integration into fully automated manufacturing cells
  • Aberlink's revolutionary easy-to-use measurement software
  • Shortest learning curve of any equivalent system - 1 day without prior CMM experience
  • Smallest overall footprint of any comparable size shop floor CMM
  • Industrial joystick as standard
  • Aberlink 3D measurement software for touch probe feature inspection
  • Windows based controller
  • Renishaw TP20 probe system
  • Aberlink probe stylus kit

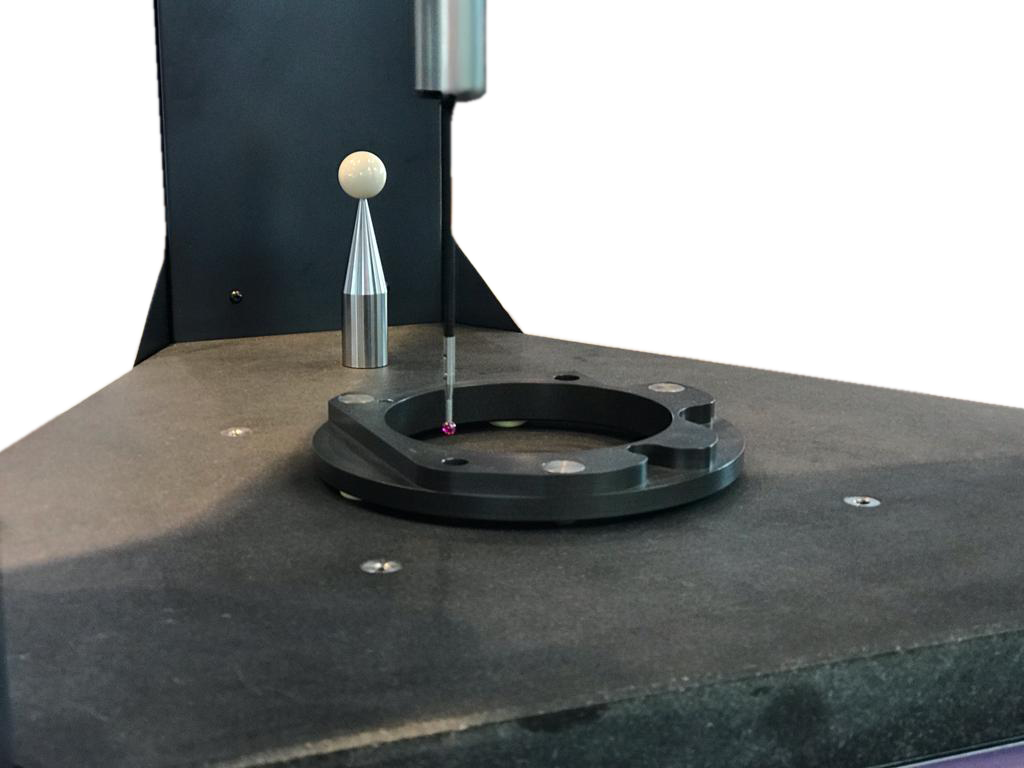

  • Aberlink Ø19mm sphere CMM requalification kit
  • User training course - up to 4 trainees
  • 12 months full parts and labour warranty
  • Free telephone helpdesk support
  • Free software upgrades - no maintenance fees or contracts

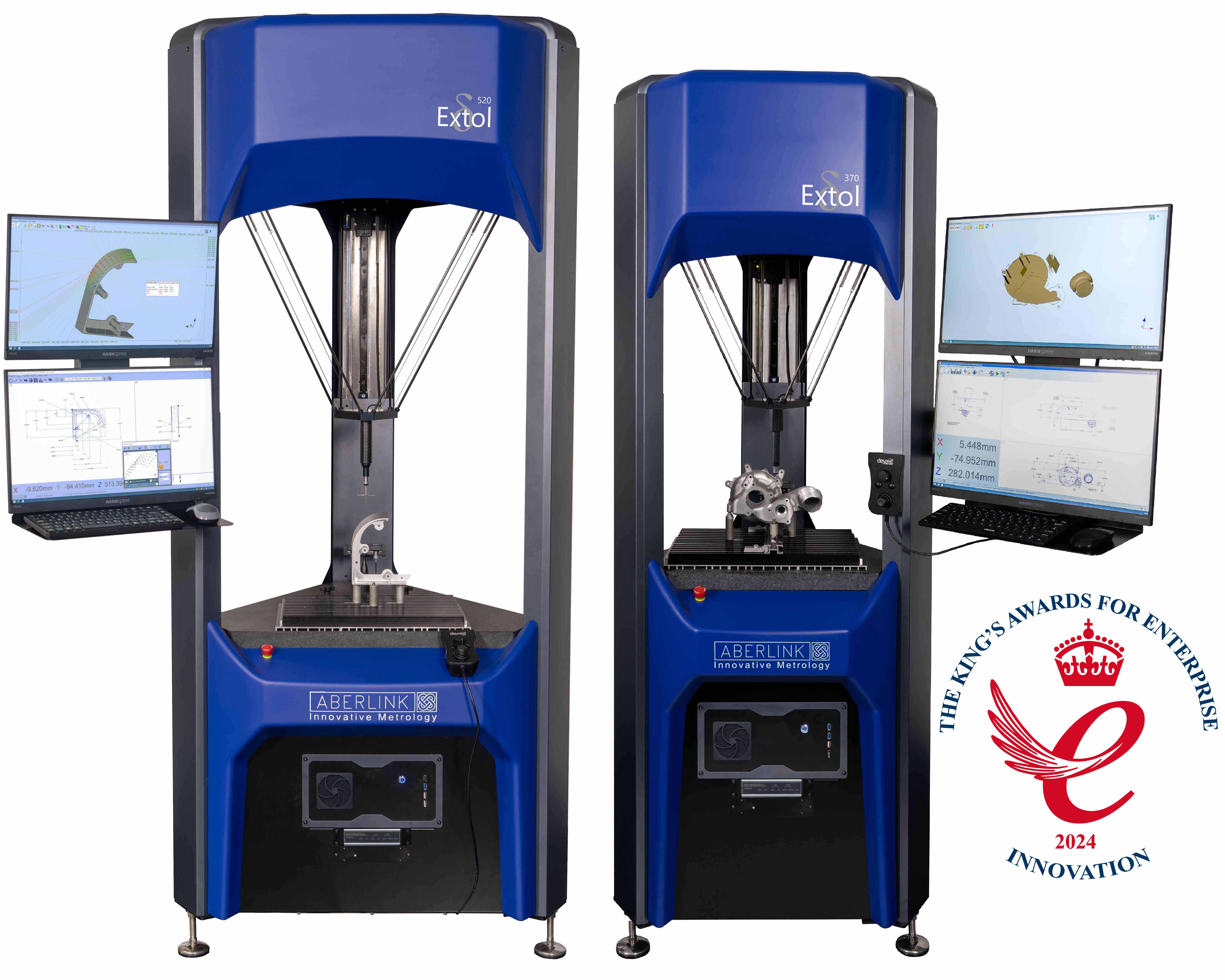

Extol 370 Extol 520
Axis Travel (mm) XY Dia. 370
Z 270		 XY Dia. 520
Z 300
Overall Size (mm) X 730
Y 715
Z 2000		 X 990
Y 950
Z 2200
Motion CNC CNC
CMM Structure Delta Delta
Suitable For Shop Floor/Inspection Room Shop Floor/Inspection Room
Drive Type Belt (w/linear bearings) Belt (w/linear bearings)
*Volumetric Accuracy TP20
(2.6 + L/250)µm
TP200
(2.5 + L/250)µm
SP25M
(2.3 + L/250)µm		 TP20
(2.6 + L/250)µm
TP200
(2.5 + L/250)µm
SP25M
(2.3 + L/250)µm
Scale Resolution 0.1µm 0.1µm
**Optimum Temp Range 18 - 22°C 18 - 22°C
Operational Temp Range 5 - 45°C 5 - 45°C
Table Construction Solid Granite Solid Granite
Table Load Capacity 200kg 200kg
Max. Velocity Vector 500mm/sec 500mm/sec
Max. Acceleration Vector 750mm/sec² 750mm/sec²
Air Required? No No
Air Consumption n/a n/a
Required Air Pressure n/a n/a
Aberlink Camera support No No

*The machine should not be positioned where it will be subjected to rapid changes in temperature. Max rate of ambient temperature change should not be more than 1°C/hour.
