- Aberlink 3D measurement software for touch probe feature inspection
- Windows based controller, machine controller card and peripherals
- Steel CMM workbench with fixed monitor arm or control cabinet
- Renishaw TP8 manual indexing probe head and integrated probe
- Aberlink probe stylus kit
- Aberlink Ø19mm sphere CMM requalification kit
- User training course - up to 4 trainees and software user guide
- 12 months full parts and labour warranty
- Free telephone helpdesk support
- Free software upgrades - no maintenance fees or contracts
- Common Probe Options
- RTP20
- PH10T (w/TP20, TP200)
- PH10M (w/SP25)
- PH6M (w/SP25)
The Halo can be supplied with any Renishaw touch trigger probe and probe head. For more help selecting the right probe, view our probe head comparison table.
| Axis Travel (mm) Halo |
X 800
Y 1000, 1600
Z 600 |
| Overall Size (mm) Halo |
X 1403
Y 1530, 2130
Z 2503 |
| Axis Travel (mm) Halo L |
X 1000
Y 1200, 2000
Z 800 |
| Overall Size (mm) Halo L |
X 1603
Y 1830, 2630
Z 2987, 3037 |
| Motion |
CNC |
| Structure |
Bridge |
| Suitable for |
Inspection Room / Shop Floor |
| Drive Type |
Belt Drive |
| *Volumetric Accuracy |
TP20
(2.1 + L/250)µm
TP200
(2.0 + L/250)µm
SP25M
(1.8 + L/250)µm |
| Scale Resolution |
0.1µm |
| **Optimum Temp Range |
18 - 22°C |
| Operational Temp Range |
5 - 45°C |
| Table Construction |

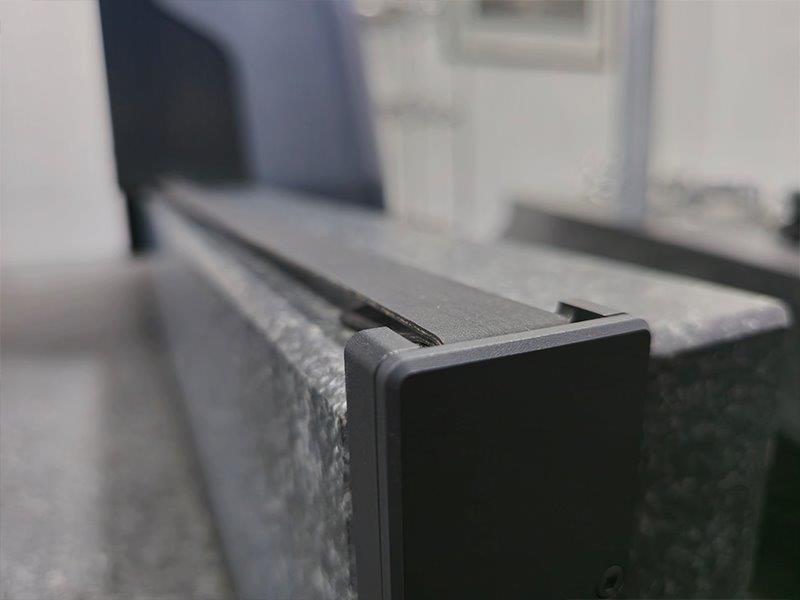

Solid Granite |
| Table Load Capacity |
1000kg |
| Max. Velocity Vector |
1000mm/sec |
| Max. Acceleration Vector |
1000mm/sec² |
| Air Required |
Yes |
| Air Consumption |
100 l/min (3.53 cfm) |
| Required Air Pressure |
7 bar (100 psi) |
| Aberlink Camera Support |
Yes |
*Maximum Permissible Error MPEE within the thermal limits defined for optimum temperature range.
**Installation environmental thermal limits: Rate of change <1°C/hr and <2°C/24hr. Temperature gradient <1°C/m
