Project X is different. It utilises a patented technology XY scale, that records not only X and Y position but also any rotational movement of the camera system. The camera is free to glide around the measurement area mounted on a simple air bearing system, without any worry about over constraining the mechanics which could lead to accuracy loss.

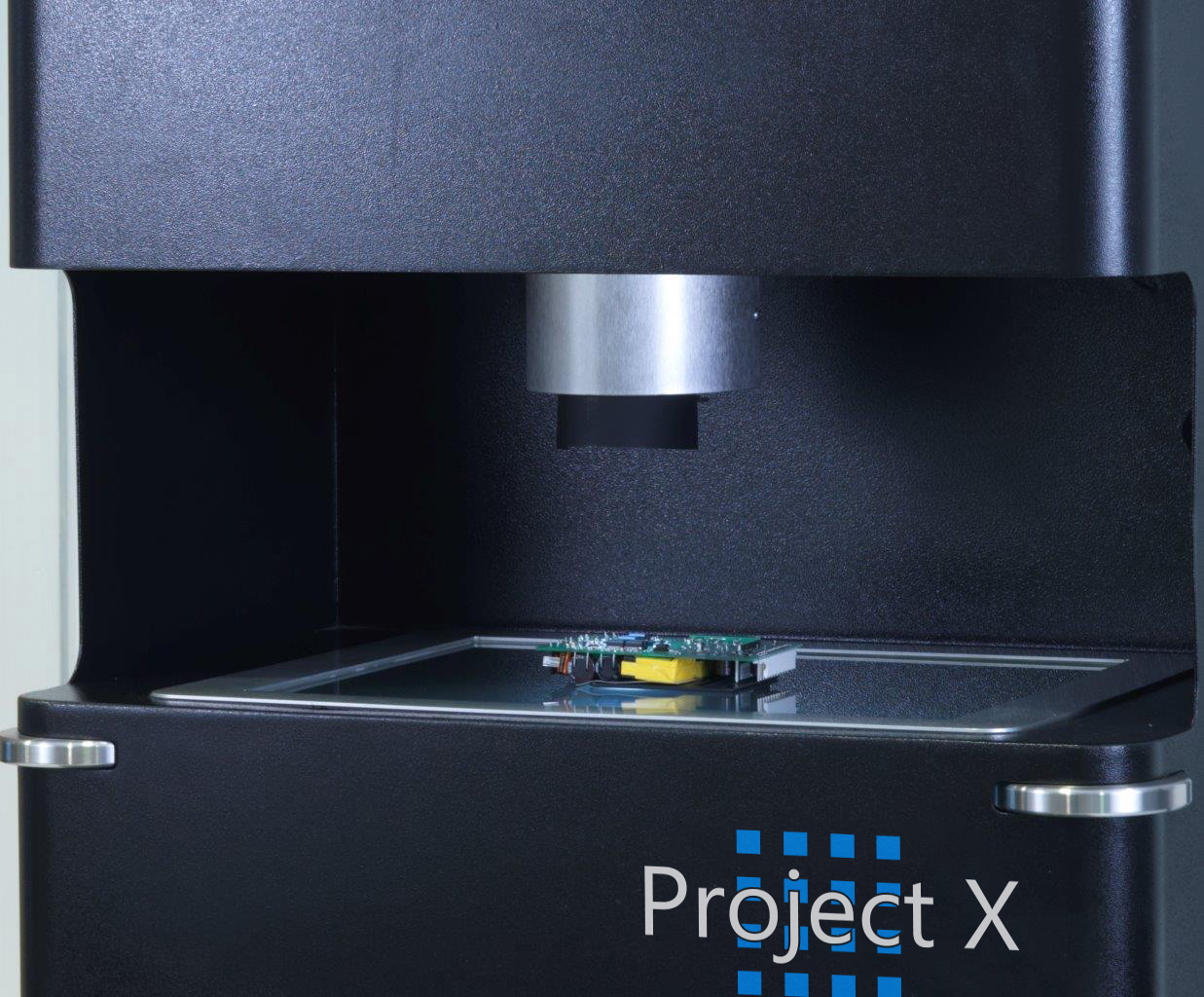

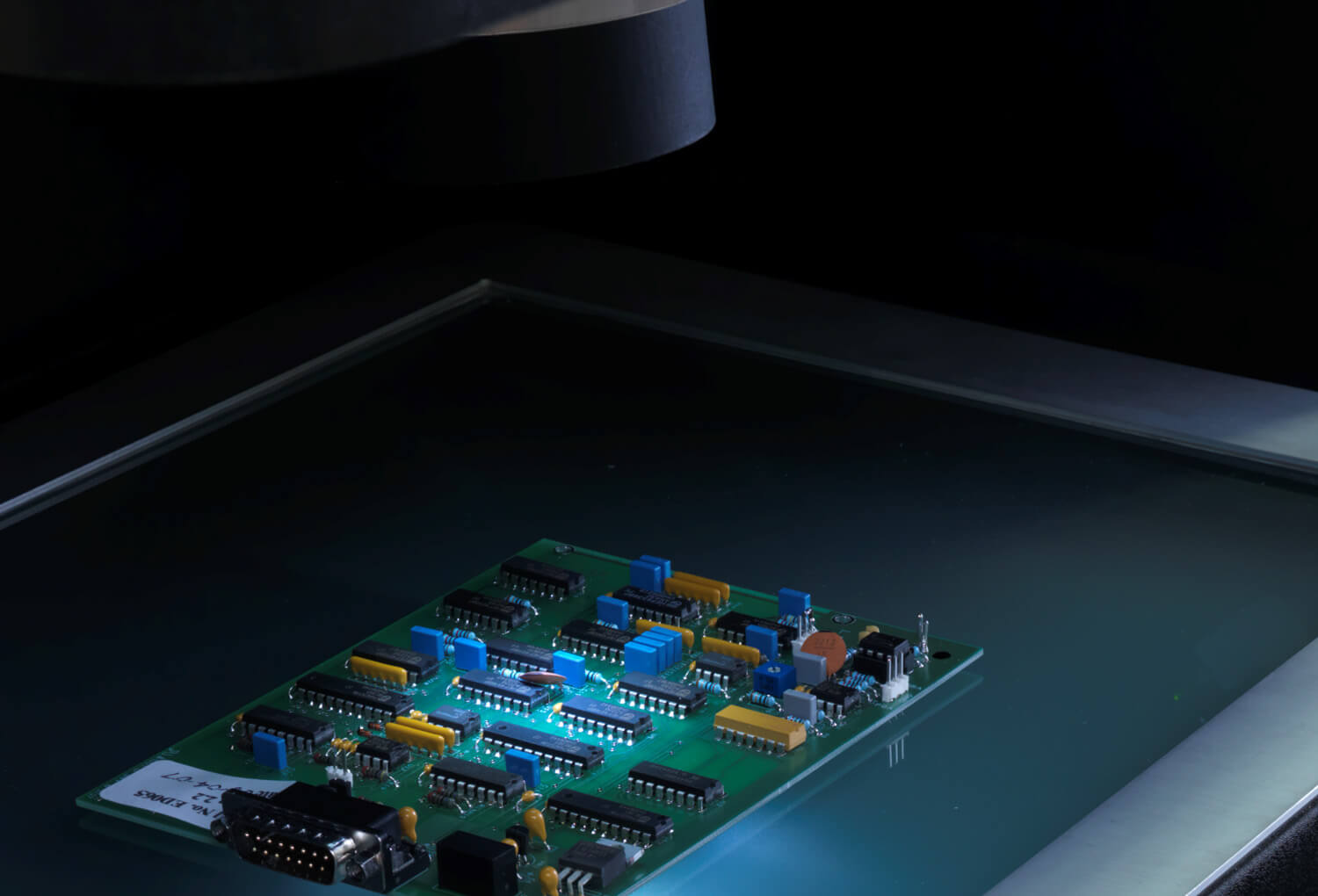

The Project X is an absolute XY scale system, which means as soon as you switch on the machine it knows exactly where it is. Components are placed on a glass table and remain stationary, while the camera is moved around taking measurements above. There is no need to secure the component on the table as there would be on a moving stage machine.
Combine the simple mechanical structure, made possible by the revolutionary scale technology, with the Aberlink vision measurement software and you will soon understand why Project X is the standard for 2-dimensional measurement.
Project X finally replaces the old technology of a profile projector. It is easier to use than a profile projector. It is quicker to use than a profile projector and it will deliver reliable, consistent inspections time after time. Project X is available as either a manual machine or with full CNC control.

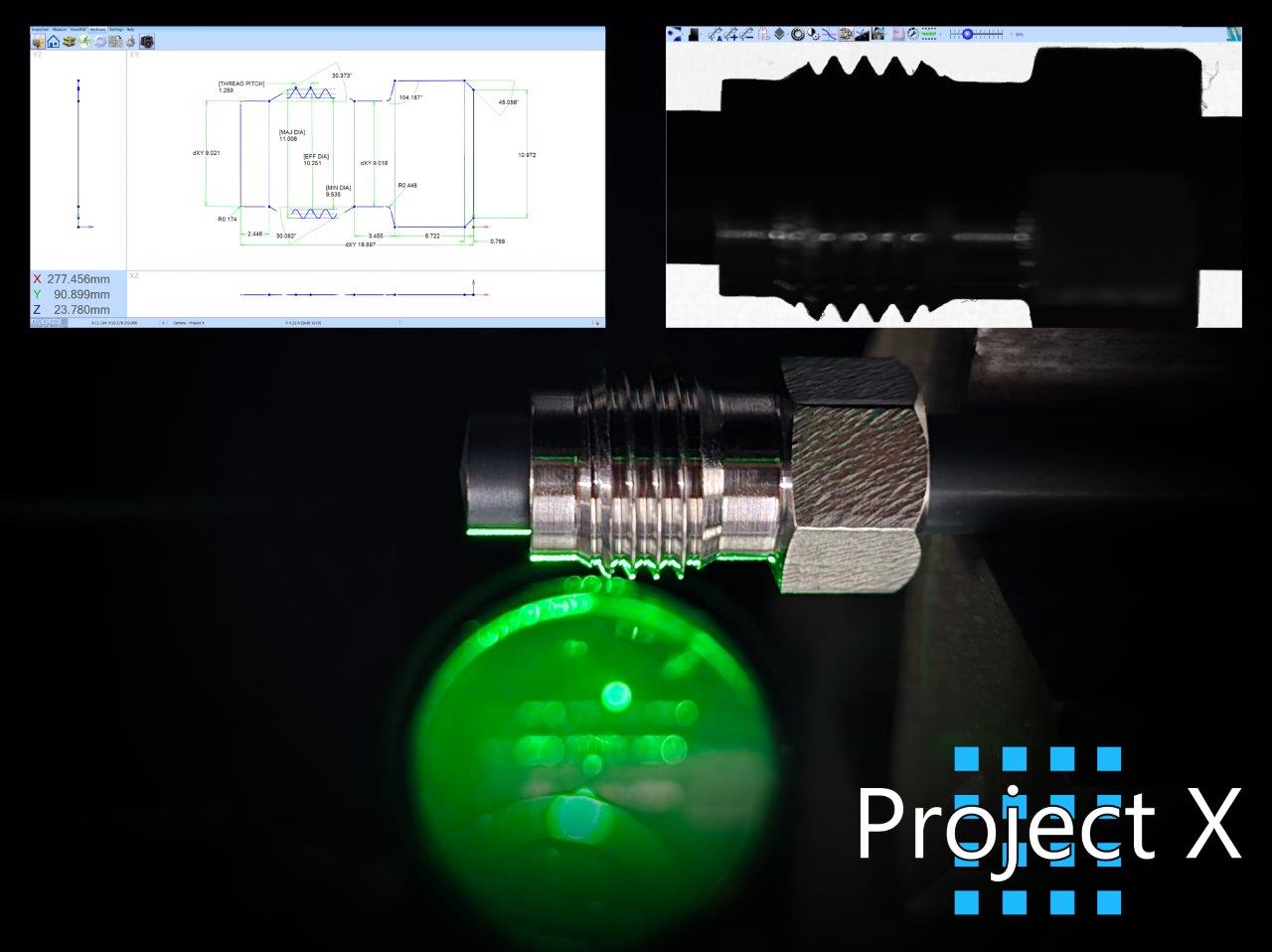

Project X, has been updated with a new, green light, collimated under stage light. This significant improvement to the backlight illumination of deep cross-section or turned components creates a crisp silhouette of the profile being measured. This clear contrast between light and dark ensures the automatic edge detection results in even better accuracy and repeatability of the part/features being measured.
Axis Travel (mm) | X 400 Y 300 Z 125 |
Overall Size (mm) | X 583 Y 722 Z 670 |
Stand Off (mm) | 125 |
Field of View (mm) | 10 |
2D Accuracy | 7.5µm |
Optimum Temp Range | 18 - 22°C |
Maximum Load Capacity | 3kg |
